Electrical specifications |
||||||||
|
Frequency range(MHz) |
420-440 |
840-930 |
1170-1280 |
1370-1530 |
1550-1620 |
2400-2500 |
5150-5300 |
5725-5850 |
|
Polarization |
Vertical and Horizontal |
|||||||
|
Gain (dBi) |
6.5±0.5 |
14±0.5 |
14±0.5 |
11±0.5 |
11±0.5 |
16.5±0.5 |
16.5±0.5 |
16.5±0.5 |
|
Horizontal Beam width(º) |
65±5° |
|||||||
|
Vertical Beam width(º) |
15±5° |
|||||||
|
Impedance (Ω) |
50 |
|||||||
|
VSWR |
≤1.8 |
|||||||
|
Maximum input power(W) |
50 |
50 |
50 |
50 |
50 |
100 |
50 |
80 |
|
Lightning protection |
DC Ground |
|||||||
|
Mechanical specifications |
||||||||
|

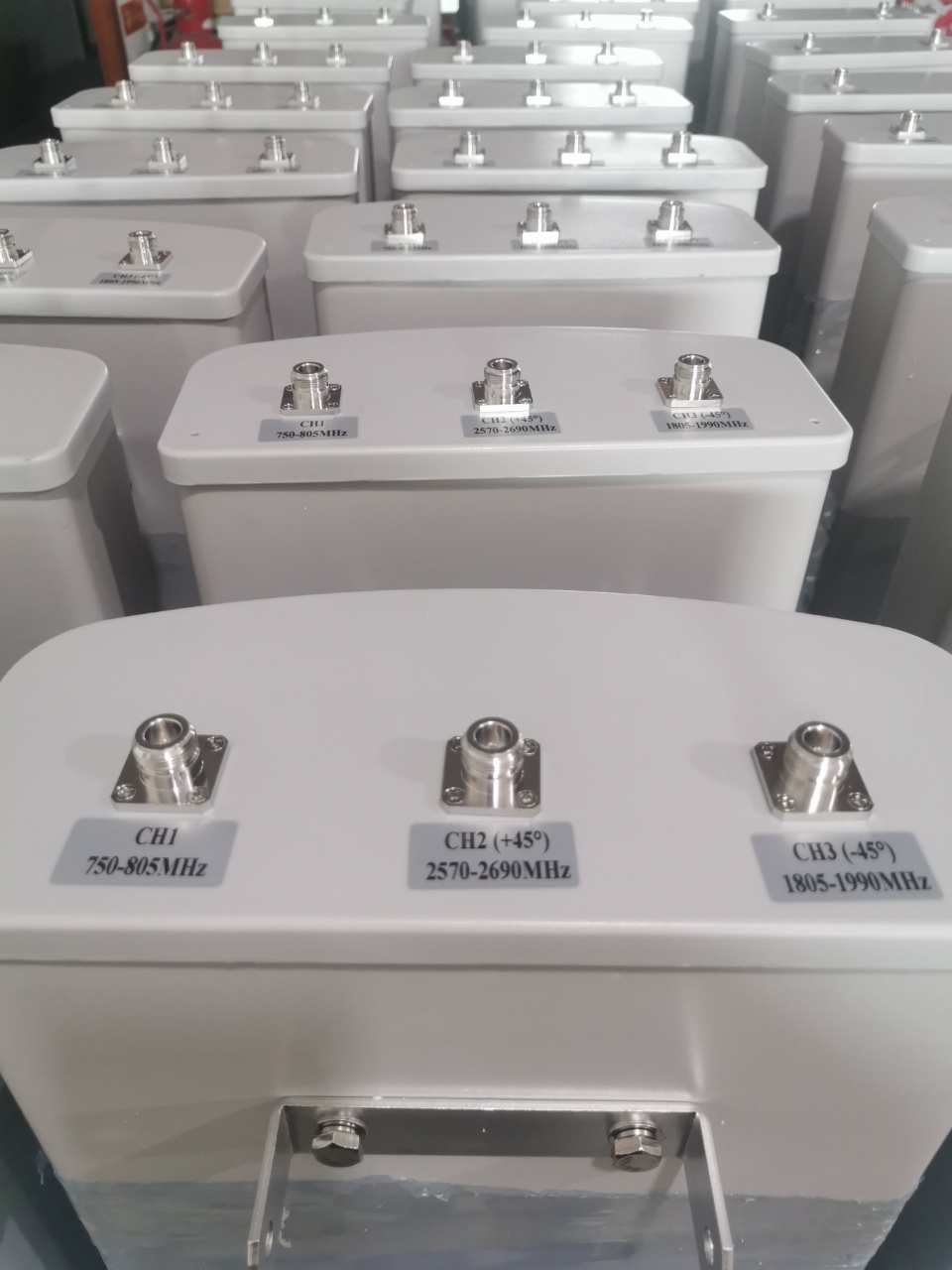

Connector |
8*N-Female |
|||||||
|
Dimension(mm) |
1310×327×110 |
|||||||
|
Antenna weight(kg) |
8 |
|||||||
|
Reflector Material |
Aluminum |
|||||||
|
Rated wind velocity(m/s) |
60 |
|||||||
|

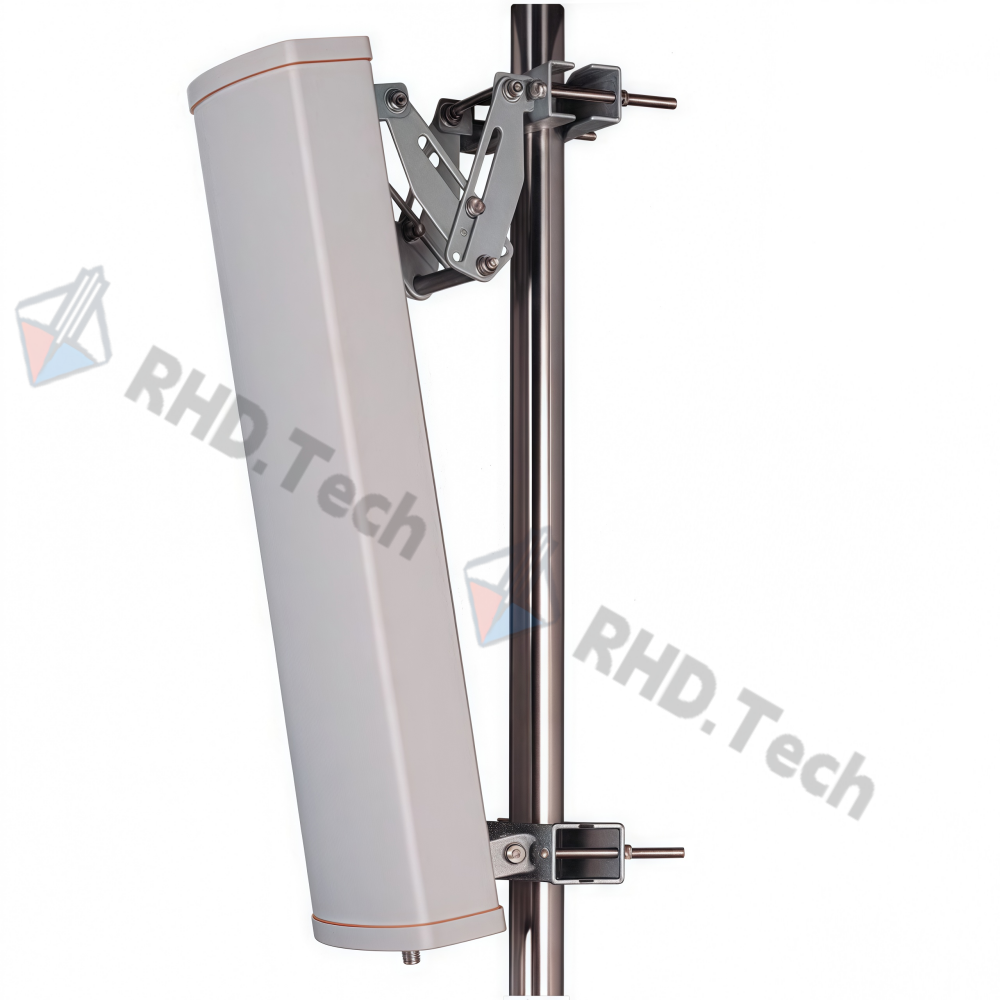

Support shank diameter(mm) |
Φ30～Φ60 |
|||||||
Key Features:
✔ Customizable Frequency Bands – Supports 400MHz-6G by default, with the ability to customize for other frequency ranges as required.
✔ High Gain & High Power – Optimized for superior signal strength and long-range coverage.
✔ 5-Port Design – Supports multiple connections, enhancing network efficiency and scalability.
✔ Directional Radiation Pattern – Focuses signal transmission in a specific direction for improved coverage and reduced interference.
✔ Rugged Outdoor Build – Weatherproof and durable for reliable operation in harsh environments.
✔ Tailored Solutions Available – Fully customizable to meet customer-specific frequency and design requirements.
Applications:
• Cellular Base Stations (2G/3G/4G/LTE)
• Wi-Fi and Wireless Networking
• Private and Industrial Communication Systems
• Remote Monitoring and IoT Applications
• Signal Enhancement for Rural and Urban Deployments
RHD TECH specializes in the professional production of high-quality antennas and communication equipment, delivering top-tier performance with flexible customization options.
