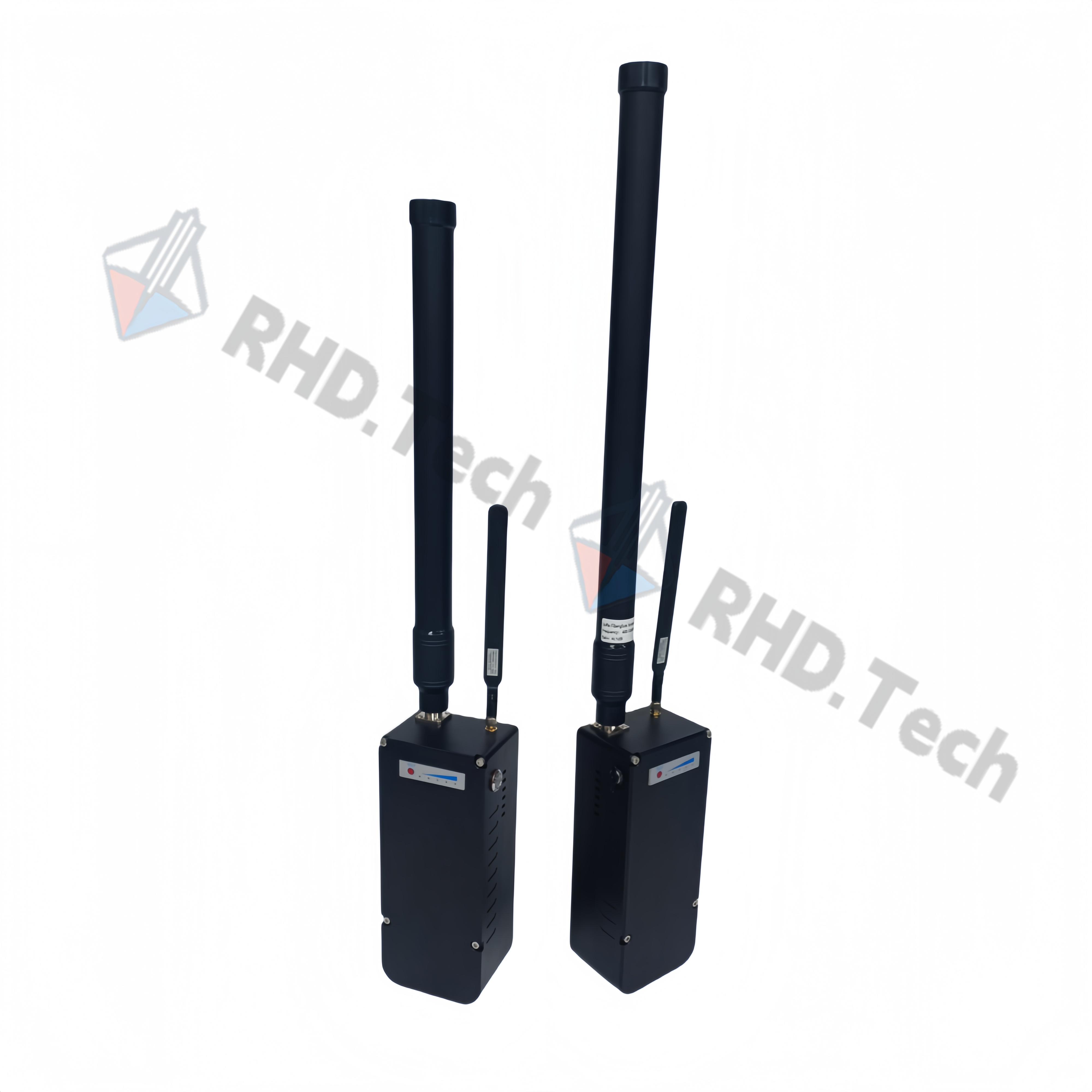

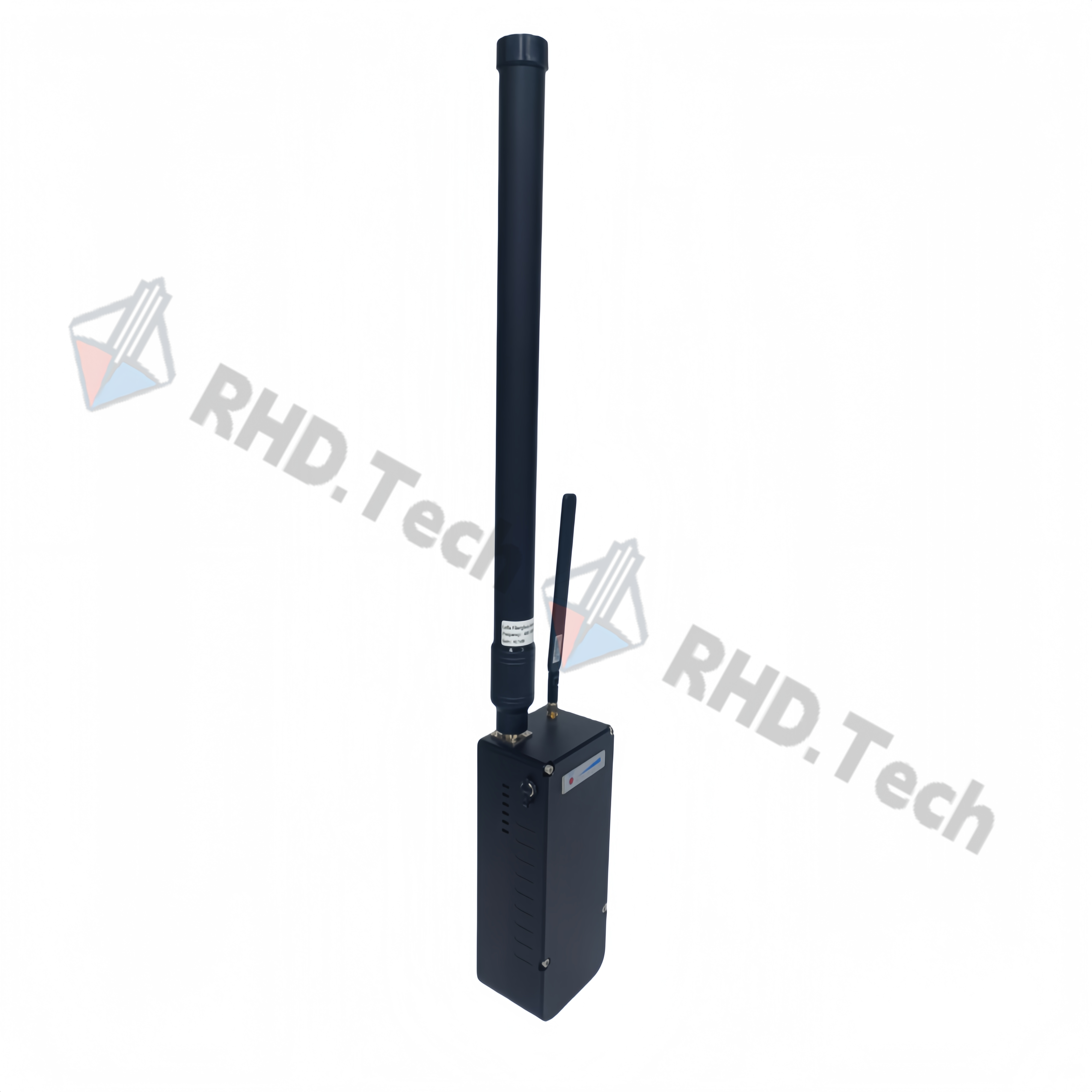

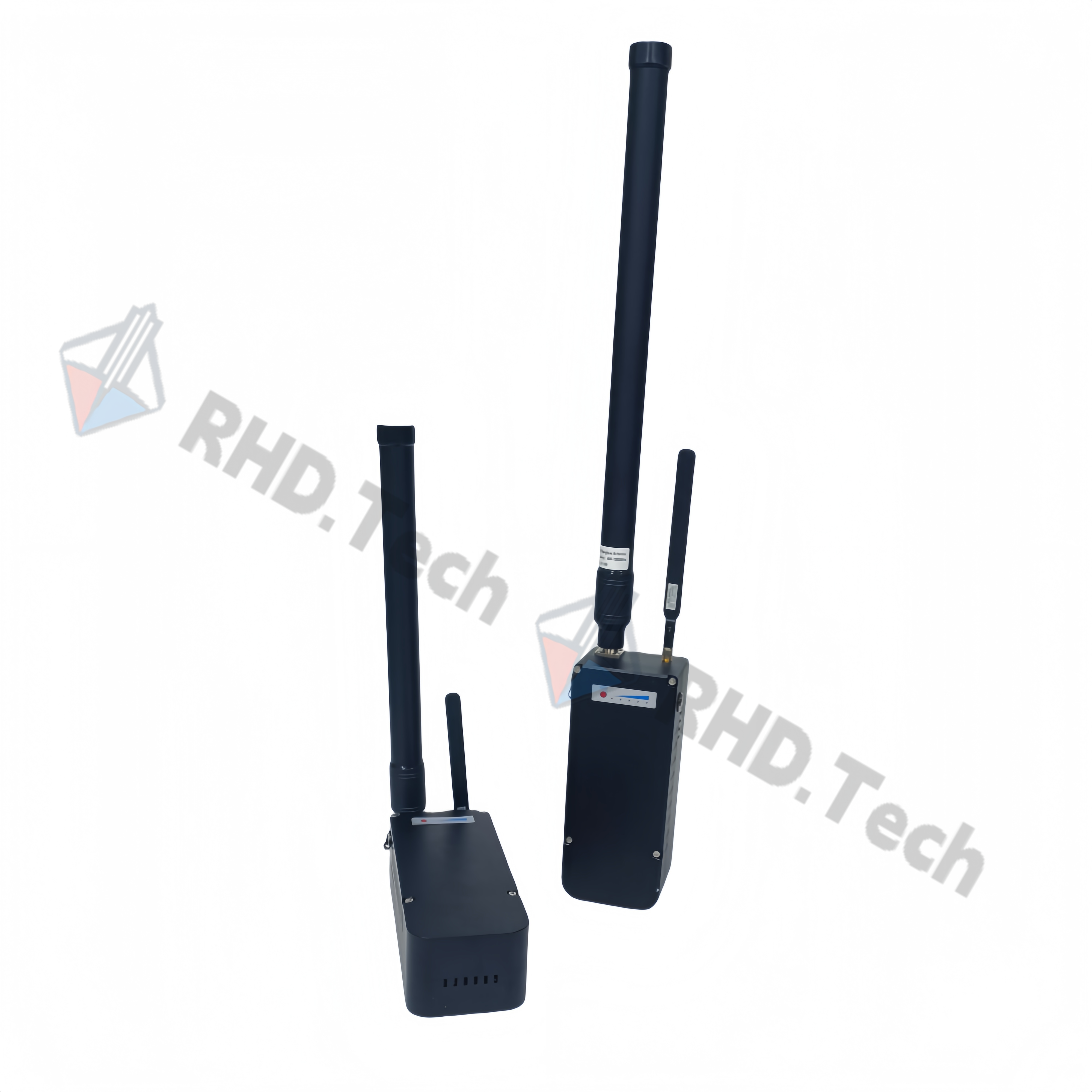

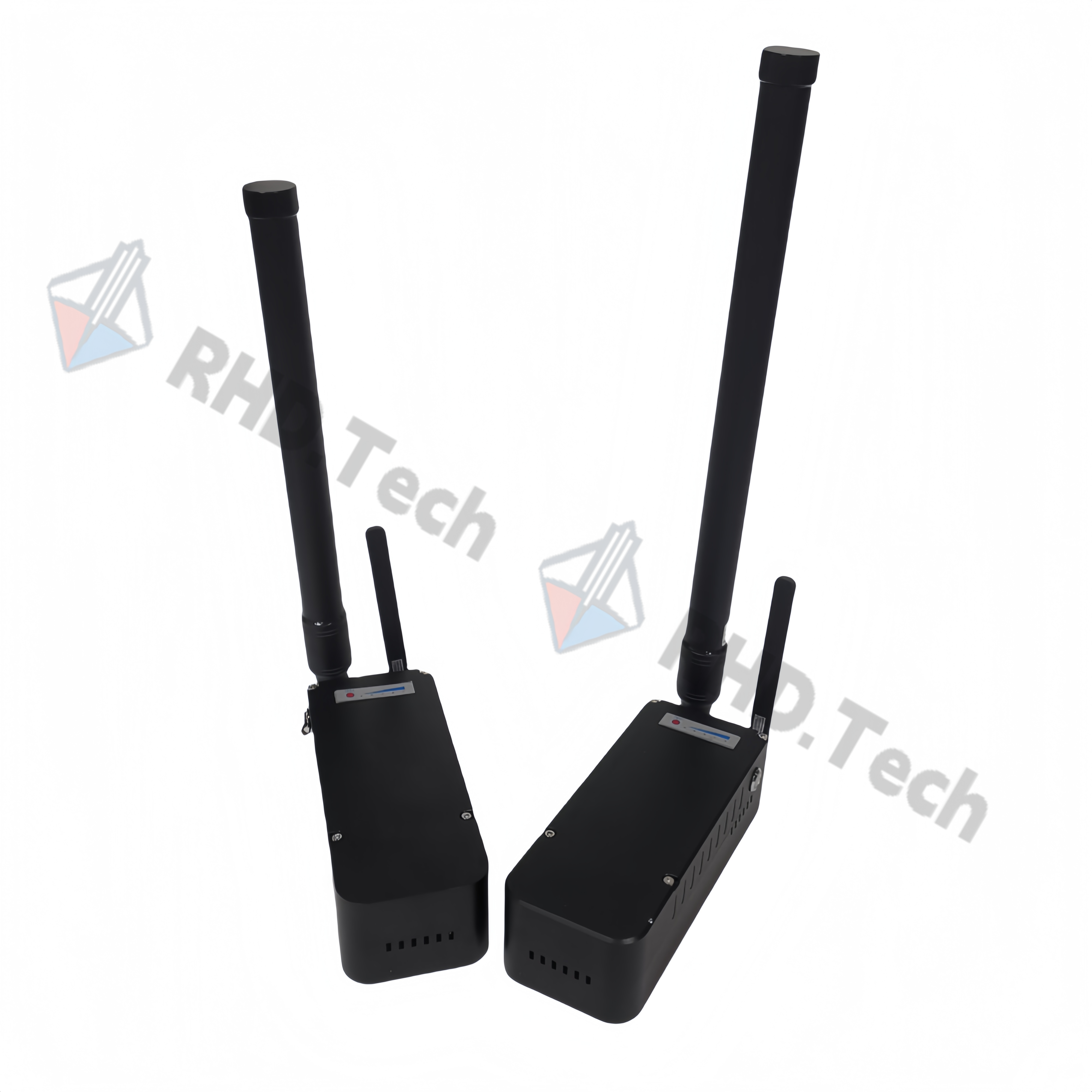

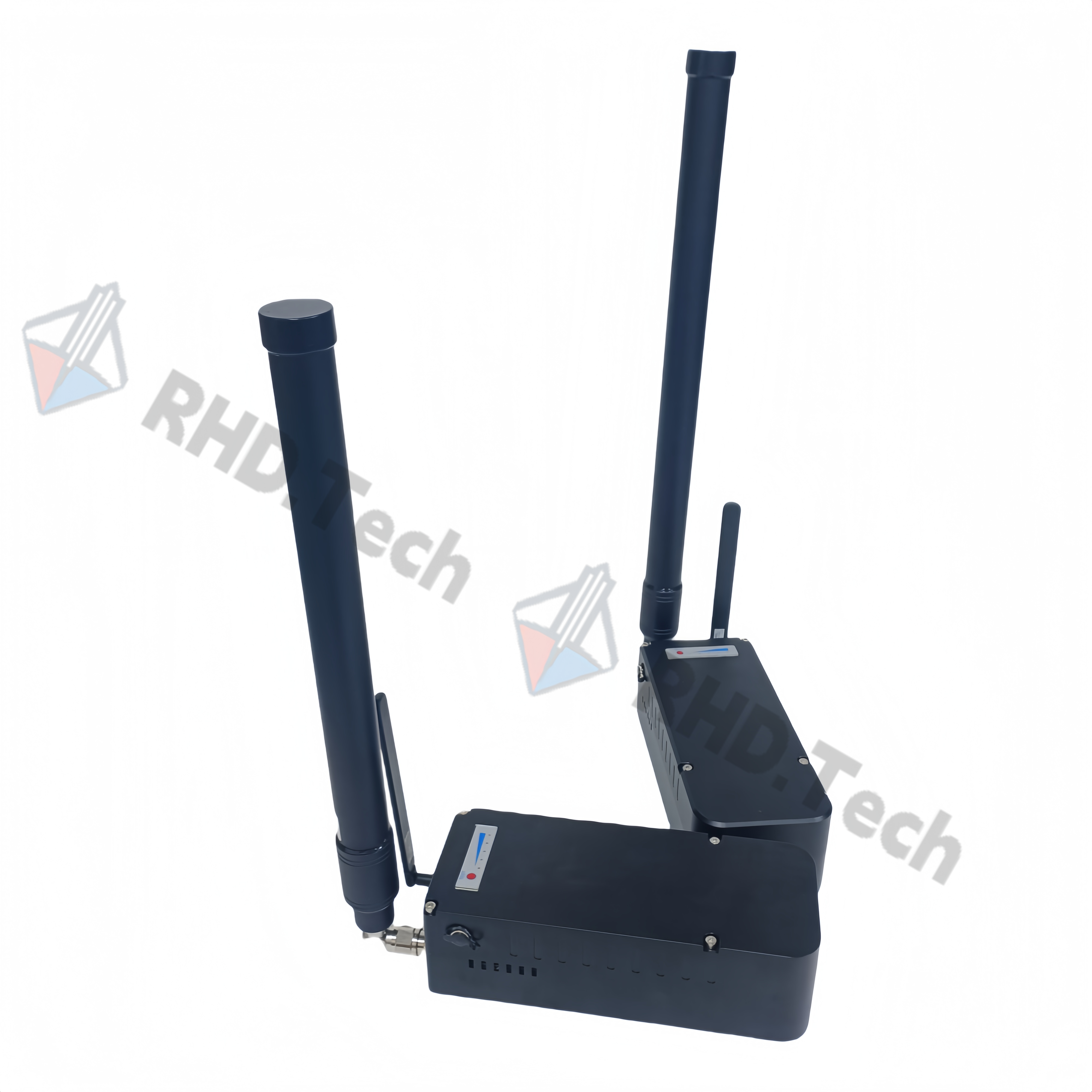

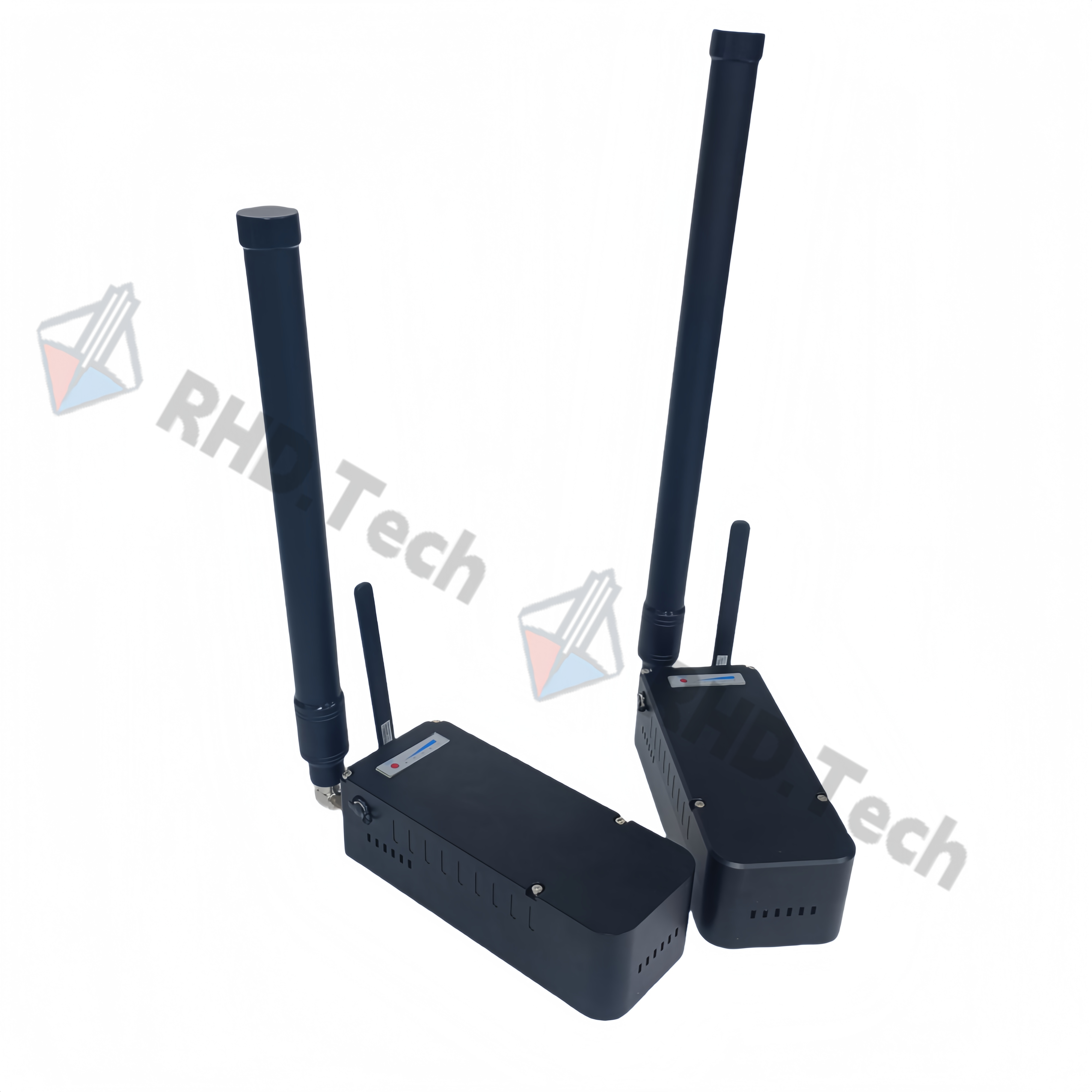

Name: RHD-OFDM360 300MHz-6GHz 50W OFDM Anti-Drone Signal Source with Integrated Detection
Brand: RHD TECH
SKU: RHDOFDM 300MHz-6GHz 50W
Availability: InStock
Rating: 5 (1 reviews)

Description

Effective suppression range	500-1000m (Depending on the model of the drone and the site of use)
Suppressor power	50W
Horizontal suppression angle	360 degrees
Antenna gain	4dBi±1dBi
Response time	≤1S
Suppressor frequency range	300-1100 MHz (OFDM signal)
Detector frequency range	300-6000 MHz (all FPV)
Operating temperature	-20℃ +60℃
Operating Voltage	DC 28V
Built-in battery	30.4 Volts
Autonomous work time	Detector up to 15 hours / suppressor up to 1 hour
Body material	Aluminum alloy
Dimensions of the device	2609872 mm
Antenna size	500*30 mm
Weight	2.6 kg

RHD-OFDM360 50W is a portable, dual-function device that combines a drone suppressor with a high-performance UAV detector. It features advanced ultra-high frequency broadband interference technology along with next-generation detection algorithms, ensuring high-accuracy identification of almost all UAVs across a wide frequency range from "300 MHz to 6 GHz".

Key Features:
1. Universal 2-in-1 Design:
- Combines a drone suppressor and a UAV detector in one compact unit.
- Utilizes state-of-the-art ultra-high frequency broadband interference technology for versatile applications.

2. Wide Detection Range & Suppression Capability:
- Provides 360° coverage for comprehensive protection.
- Capable of simultaneously detecting and countering multiple drones within its operational area.

3. Control Mode – Forced Landing:
- Effectively forces unauthorized UAVs to land safely.

4. Compact and Lightweight:
- Ergonomically designed for ease of use and portability.
- Ideal for security, monitoring, and other field operations.

5. Simple One-Click Operation:
- The device activates with a single press of the “ON/OFF” button, allowing for rapid deployment.

6. Real-Time Battery Status:
- Features an LED indicator displaying the current battery charge from 0% to 100%.

7. Extended Battery Life:
- Equipped with a high-quality lithium battery that lasts up to 15 hours in detection mode and up to 1 hour in continuous suppression mode.

8. Robust Construction:
- Reinforced body structure offers excellent resistance to impacts and falls.

Operating Instructions:
1. Antenna Installation:
- Install the antennas according to the provided instructions.

2. Pre-Operation Check:
- Verify the battery charge level using the LED indicator. Charge the battery if necessary.

3. Powering On:
- Press the “ON/OFF” button to start the device immediately.

4. Powering Off:
- After use, press the “ON/OFF” button again to turn off the device.
